Product range

---

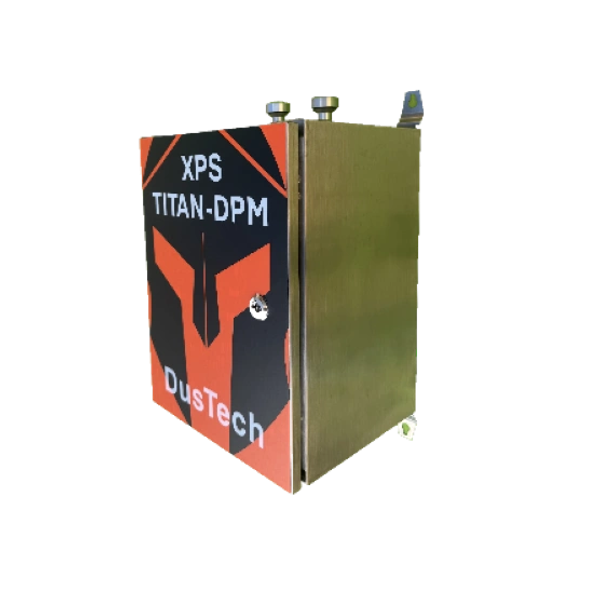

• Created to monitor Diesel Engine Emission
• First of its kind
• New benchmark for DEE monitor in workplace
• 10nm to 40um particulate detection range
• Particle counts from 10nm to 1,000nm
• Mass concentration (80,000 ug/m3)
• LDSA - 0 to 100,000 um2/cm3
• Simultaneous PM1.0, PM2.5,PM4.25,PM10 and TSP (30,000 u/m3)
• Up to 8 gases (CO, NO, NO2, SO2,CO2,H2S,O2,LEL and VOC)
• Environmental conditions
• Heat Stress (wbgt)
• Sound pressure (noise)
• 500 X 295 X 260 mm (approx.)
• Stainless steel enclosure
• Cloud Connected

• On-Screen Respirable TWA 8Hr Display
• On-Screen PM1.0, PM2.5, Respirable and PM10
• 1 sec measurement interval
• Colour Display
• RCS mode (Gravimetric Correction Factor)
• TWA8hr and STEL function
• 12+ hours runtime (typical)
• 18 hours runtime on Power Saving Mode
• 400 Million+ datalog points
• 260 grams in weight (approx.)
• 120 X 74 X 32 mm (approx.)
• Datalog download via smart device for fast data retrieval.
• Cloud ready (firmware version 3.1 and up only)

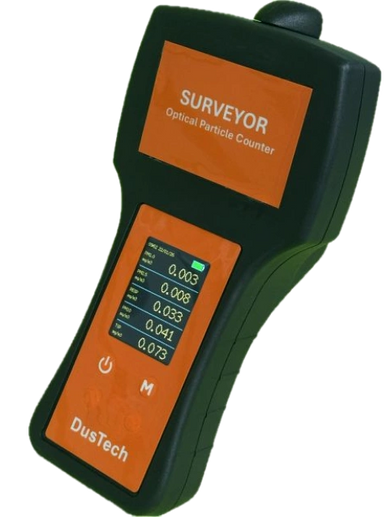

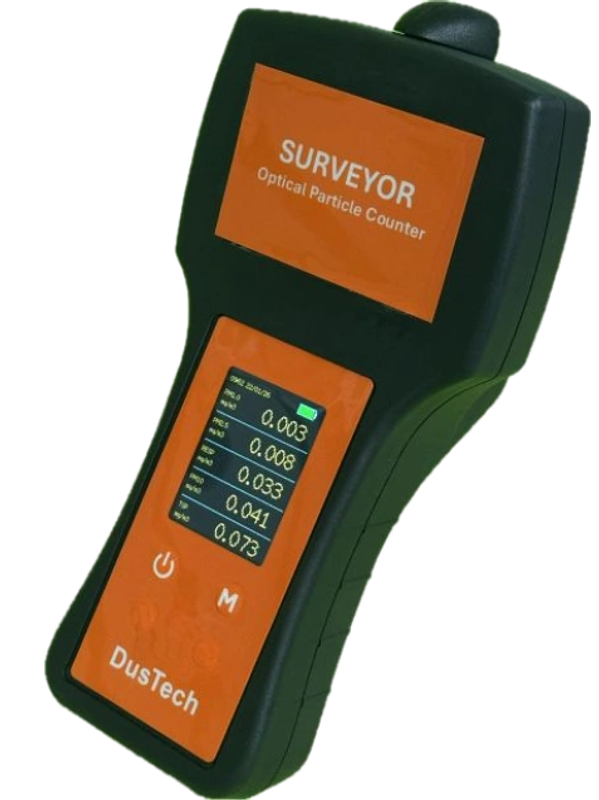

• Mass Concentration, TWA and Counts per Liter in a single instrument
• PM1.0,PM2.5, PM4.25, PM10 and TSP.
• >0.3um, >0.5um, >1.0um, >2.5um, >5.0um Particle count bin.
• 0.1 ug/m3 resolution
• TWA [8 hr] mg/m3
• 0 to 30,000 ug/m3
• 10,000 particle counts per second
•  Built-in Webserver
• 400 million+ datalog capacity
• Cloud ready
• 230 x 110 x 70 mm(approx)

• PM1.0,PM2.5, PM4.25 and PM10.
• Option for 1 gas sensor (TVOC, CO2,CO,NO,NO2).
• WI-FI, Ethernet, LTE and Serial Connectivity (SCADA).
• Cloud Connected (DusTech Dashboard).
• With 16 GB datalog storage capacity.
•  Smallest remote monitor of its class.
• Single person setup
• Optional Solar and Battery system.

                         LiFePO4 battery (11.8 Kg)

                        100 Watts Solar panel

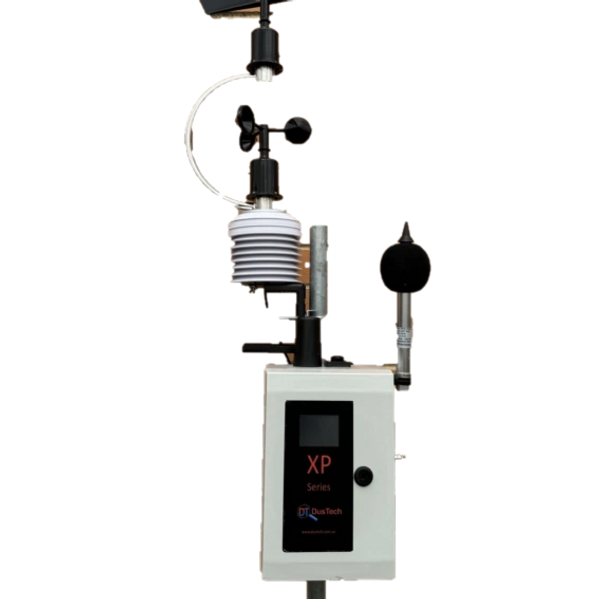

• PM1.0, PM2.5, PM4.25 and PM10
• Option for 8 gas sensor (Please see sensor list).
• Wind Speed and Direction
• Environmental Conditions
• Heat Stress Measurement
• Noise Measurement
• Touch Screen
• Local Alarms
• WI-FI, Ethernet, LTE and Serial Connectivity (SCADA).
• Cloud Connected (DusTech Dashbooard).
• With 16 GB datalog storage capacity.
• Smallest remote monitor of its class.
• Optional Solar and Battery system.

                  LiFePO4 battery (11.8 Kg)

                  100 Watts Solar panel

• Displays simultaneous 5 channel mass concentration reading, PM1.0, PM2.5, PM4.25,PM10 and TSP.
• Displays simultaneous 5 channel particle count in pcs/L. >0.3um, > 0.5um, >1.0um, >2.5um and >5.0um.
• Display Time Weighted Average [8hr]
• 400 million+ datalog records
• Smart Device Connectivity for datalog download.
• On-board beacon that activates on threshold exceedance.
• Cloud ready to dustech.live platform.
• Wall or pole mounting options
• IP66 plug pack power supply.
